The ITER Site
1 min read

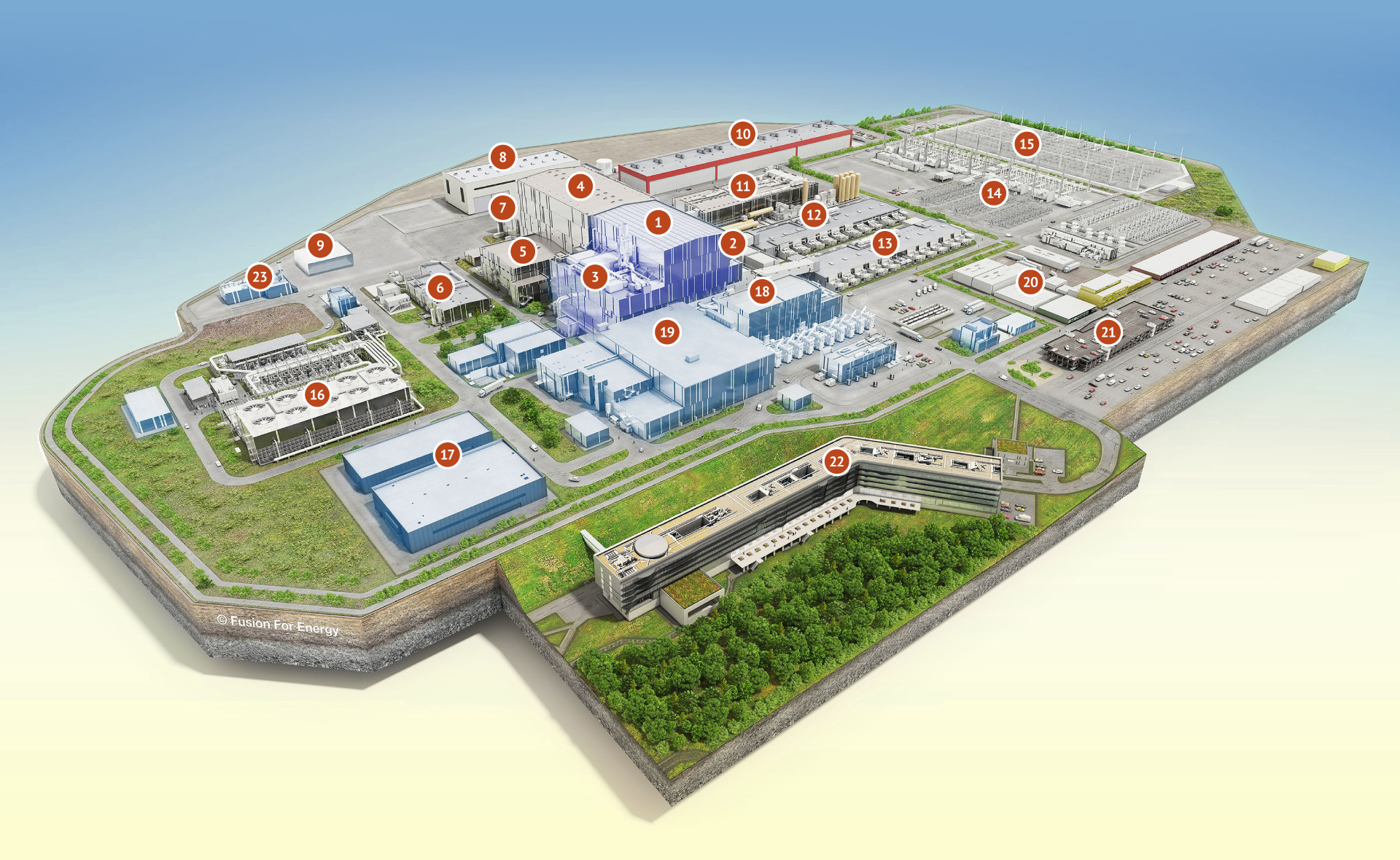

The 180-hectare ITER site is located near Saint-Paul-lez-Durance in southern France. At its centre is a 42-hectare level platform approximately 1 kilometre long and 400 metres wide, accommodating the Tokamak Complex and the numerous technical buildings and systems required for ITER operation. Together, they form the infrastructure for the world’s largest experimental fusion device.
1
Tokamak Building
2
Diagnostics Building
3
Tritium Building
4
Assembly Hall
5
Radiofrequency Heating Building
6
Site Services Building
7
Cleaning Facility
8
Maintenance Test Facility (former Cryostat Workshop)
9
Magnets Workshop
10
Winding Facility
11
Cryoplant
12, 13
Magnet Power Conversion Buildings
14
400 kV Electrical Switchyard (ITER Organization)
15
400 kV Electrical Switchyard (RTE, Réseau de Transport d’Électricité, France)
16
Heat Rejection System / Cooling Tower Zone
17
Control Building
18
Neutral Beam Power Supply Buildings
19
Hot Cell Complex (planned)
20
Contractors Area
21
Contractors’ elevated car park
22
ITER Organization Headquarters
23
Tokamak Assembly Preparatory Building
