Divertor

3 min read

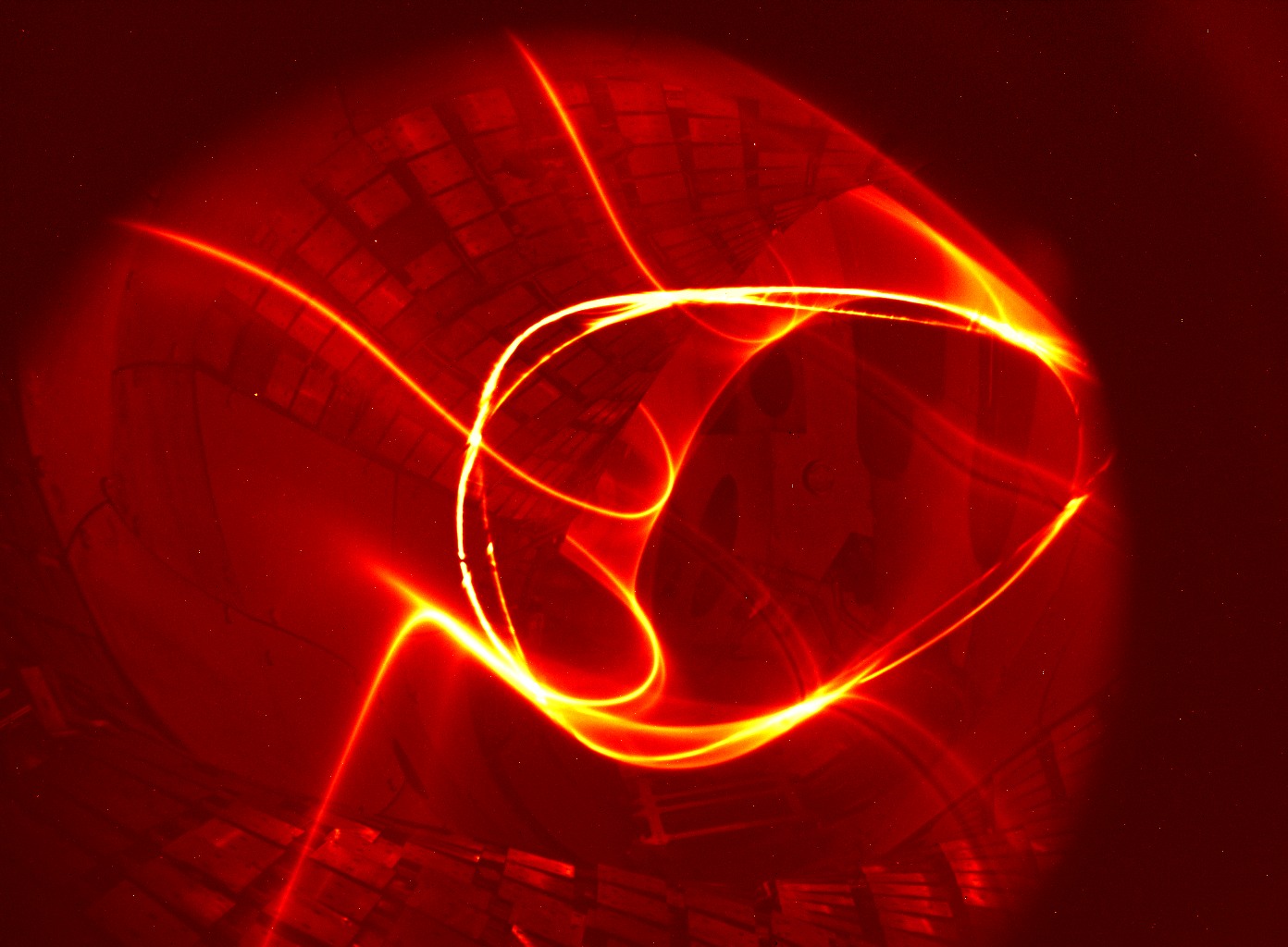

Electron-beam measurement of magnetic flux surfaces in Wendelstein 7-X. (Credit: IPP)

Electron-beam measurement of magnetic flux surfaces in Wendelstein 7-X.

Thermonuclear fusion takes place between hydrogen isotopes, but the plasma also contains unwanted particles such as impurities released from vessel walls, residual fuel and, in a fusion reactor, helium ash. These particles can increase radiative energy losses and cool the plasma. In addition, some particles and heat inevitably escape from magnetic confinement. Divertors are therefore used to direct this exhaust to dedicated target plates, where it can be cooled and pumped out of the vessel, helping to control plasma purity and density.

Island Divertor

In the plasma core, the magnetic field forms nested closed flux surfaces that confine charged particles and limit their radial transport. The outermost of these is called the last closed flux surface, which marks the boundary of the confined plasma. Outside it lies the scrape-off layer, where magnetic field lines connect the plasma edge to plasma-facing components and carry escaping particles and heat towards the divertor.

Outside the last closed flux surface, the stellarator magnetic field can be shaped to form a chain of magnetic islands. Field lines within these islands guide particles and heat from the plasma edge towards dedicated divertor target plates. Pumping systems located behind the targets remove neutralised gas and impurities from the vessel. Because this exhaust concept makes use of magnetic islands at the plasma boundary, it is known as an island divertor.

Divertor Structure

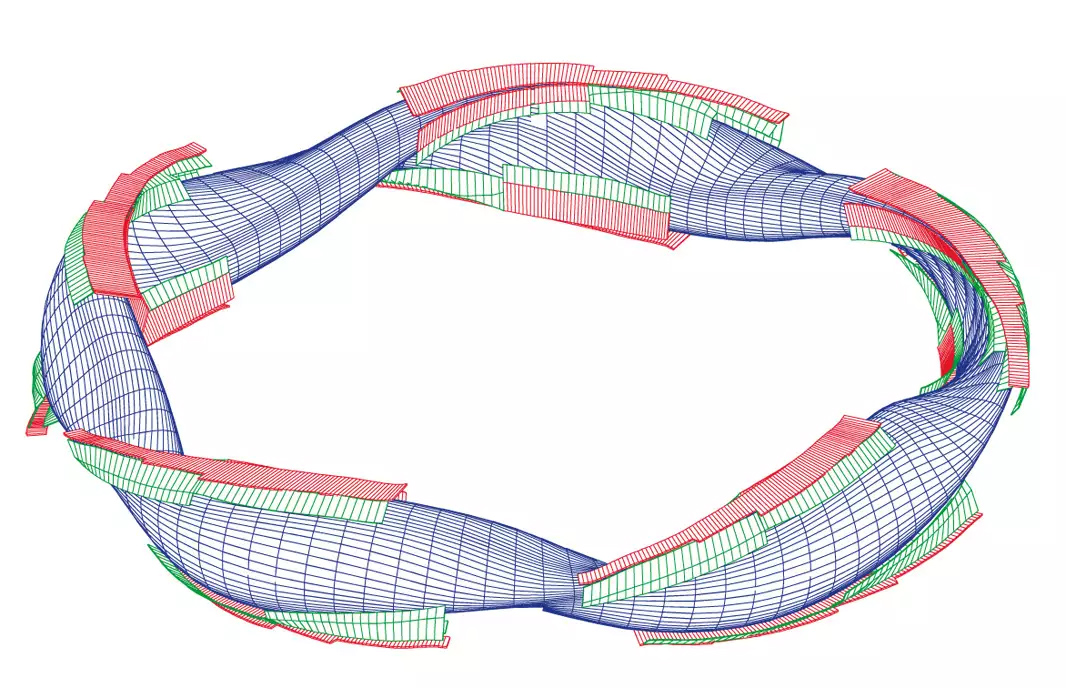

Location of the divertor in Wendelstein 7-X. (Credit: IPP)

Location of the divertor in Wendelstein 7-X.

The divertor has a complex shape because it must follow the curved geometry of the plasma edge and magnetic exhaust pattern. In Wendelstein 7-X, the high-heat-flux divertor consists of actively cooled target plates covered with carbon-fibre-reinforced carbon tiles. The tiles are mounted on copper-chromium-zirconium structures containing water-cooling channels. Their surfaces are machined with sub-millimetre precision, in some areas to about 0.1 mm, to prevent local overheating of protruding edges.

The high-heat-flux divertor of Wendelstein 7-X is designed to withstand steady heat loads of up to about 10 MW/m2. Because the magnetic field lines in the scrape-off layer intersect the vessel only in specific exhaust regions, divertor target plates are required only where these field lines strike the wall, rather than over the entire plasma-facing surface.

Early divertor concepts were already explored on stellarators such as Model B-64 in the 1950s. Modern island-divertor research was later developed much further on devices such as Wendelstein 7-AS and Wendelstein 7-X, where it has become a central part of the plasma exhaust concept.
