Central Tower Solar Power Plants
2 min read

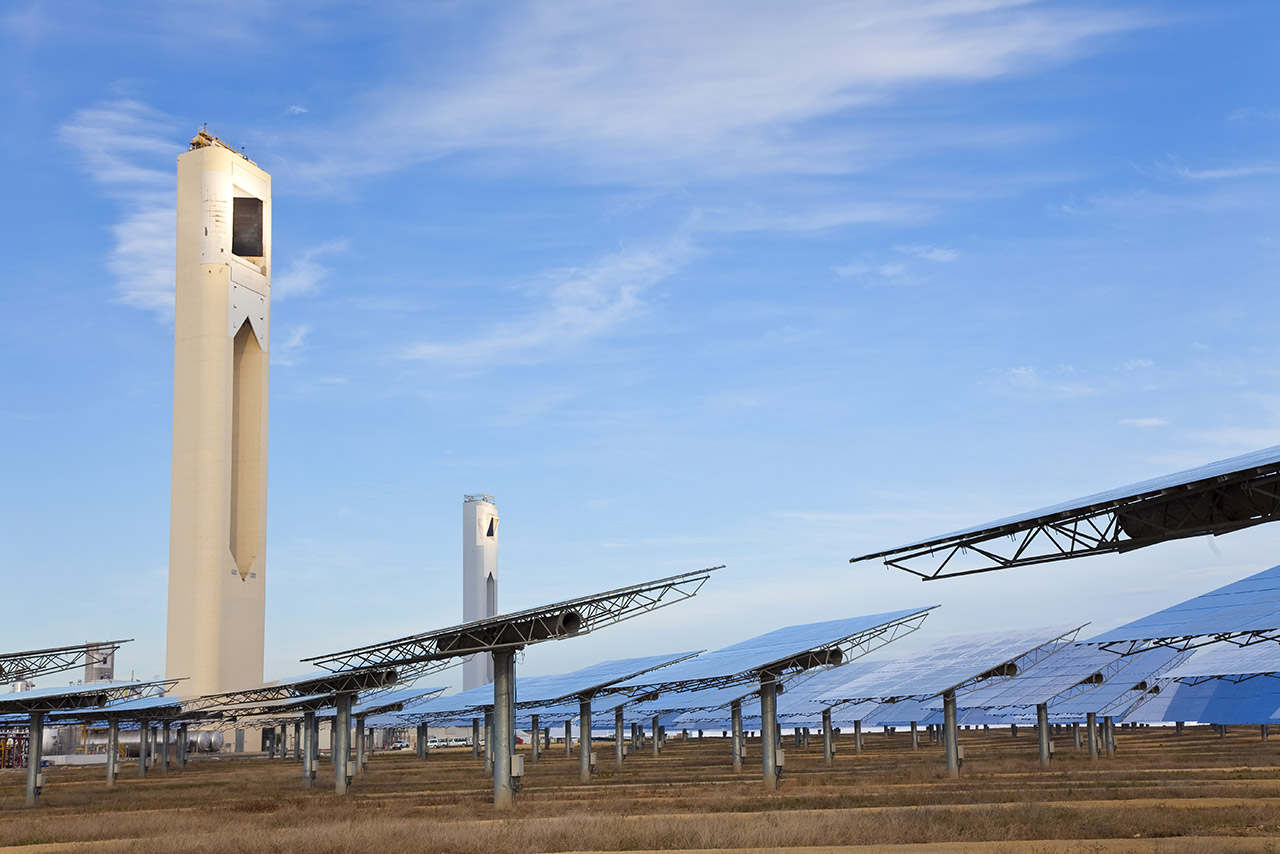

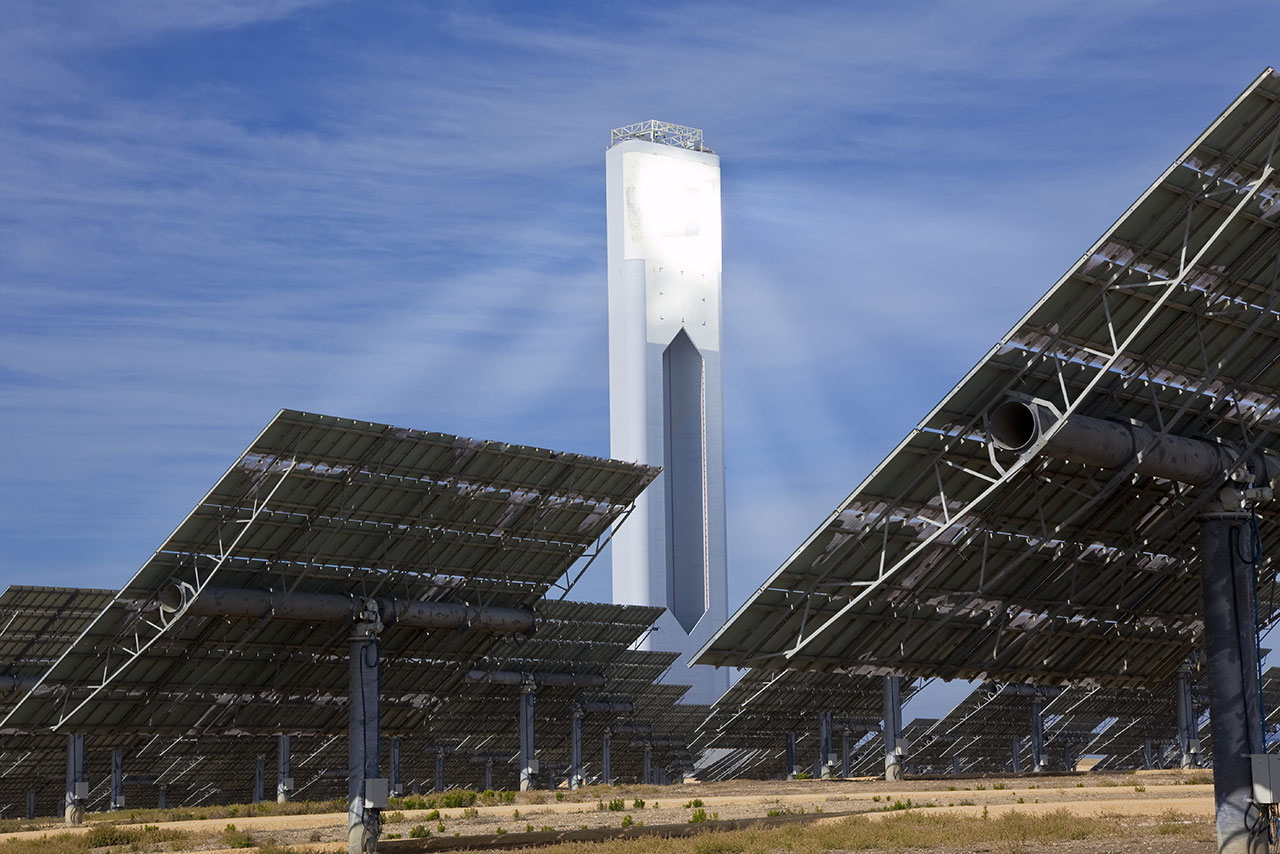

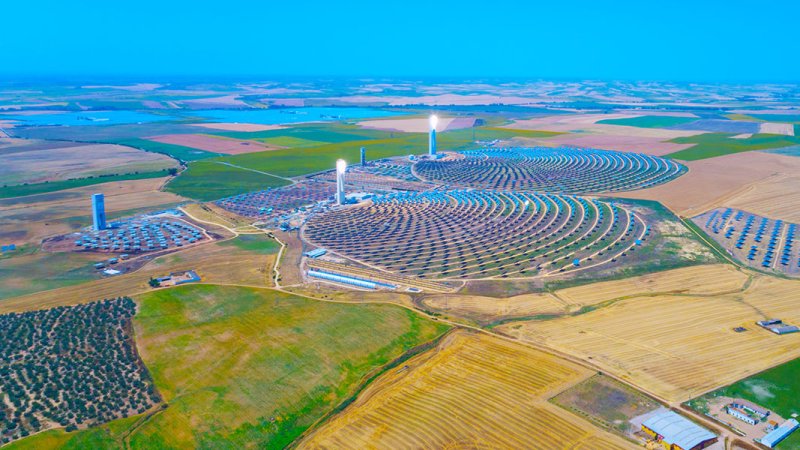

An array of heliostats continuously concentrates the sunlight to the flat absorber at the top of the tower.

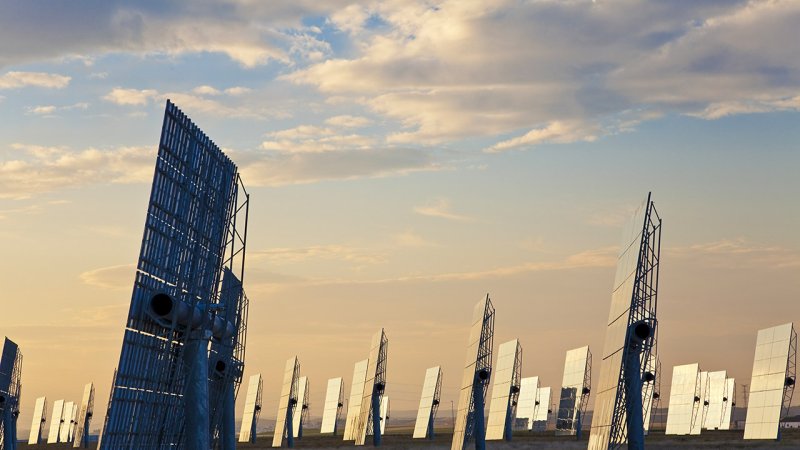

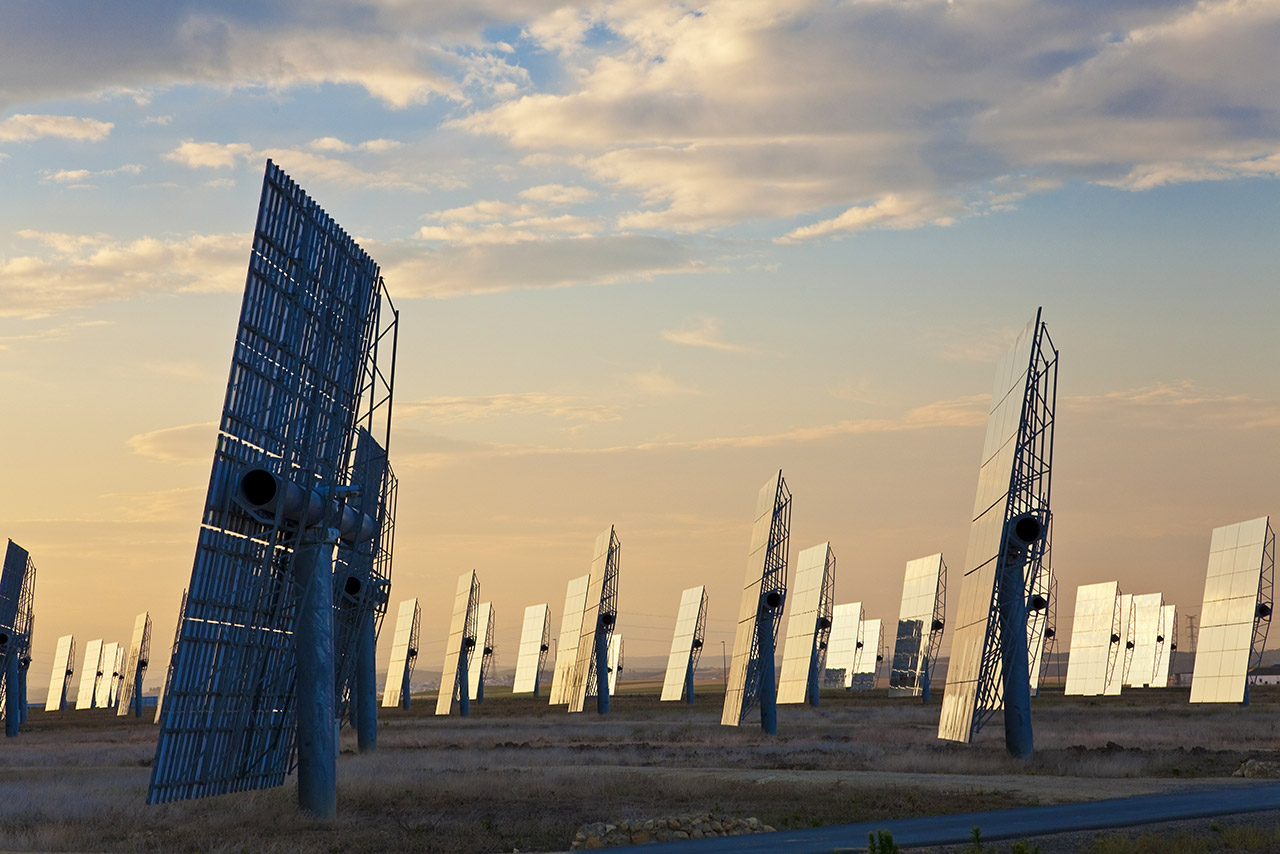

Central tower solar power plants fall into the category of concentrated solar systems. They concentrate solar radiation from a huge area into a very small space on top of a tower. To achieve that, they use flat mirrors, called heliostats, which are distributed around the tower with the absorber. A computer continually calculates the Sun’s position in the sky and adjusts the heliostats every few seconds to track it, to ensure the reflected light stays aimed at the top of the tower.

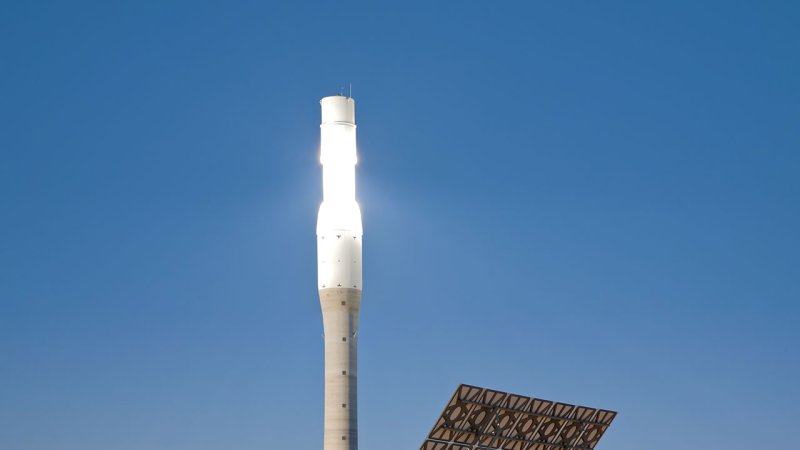

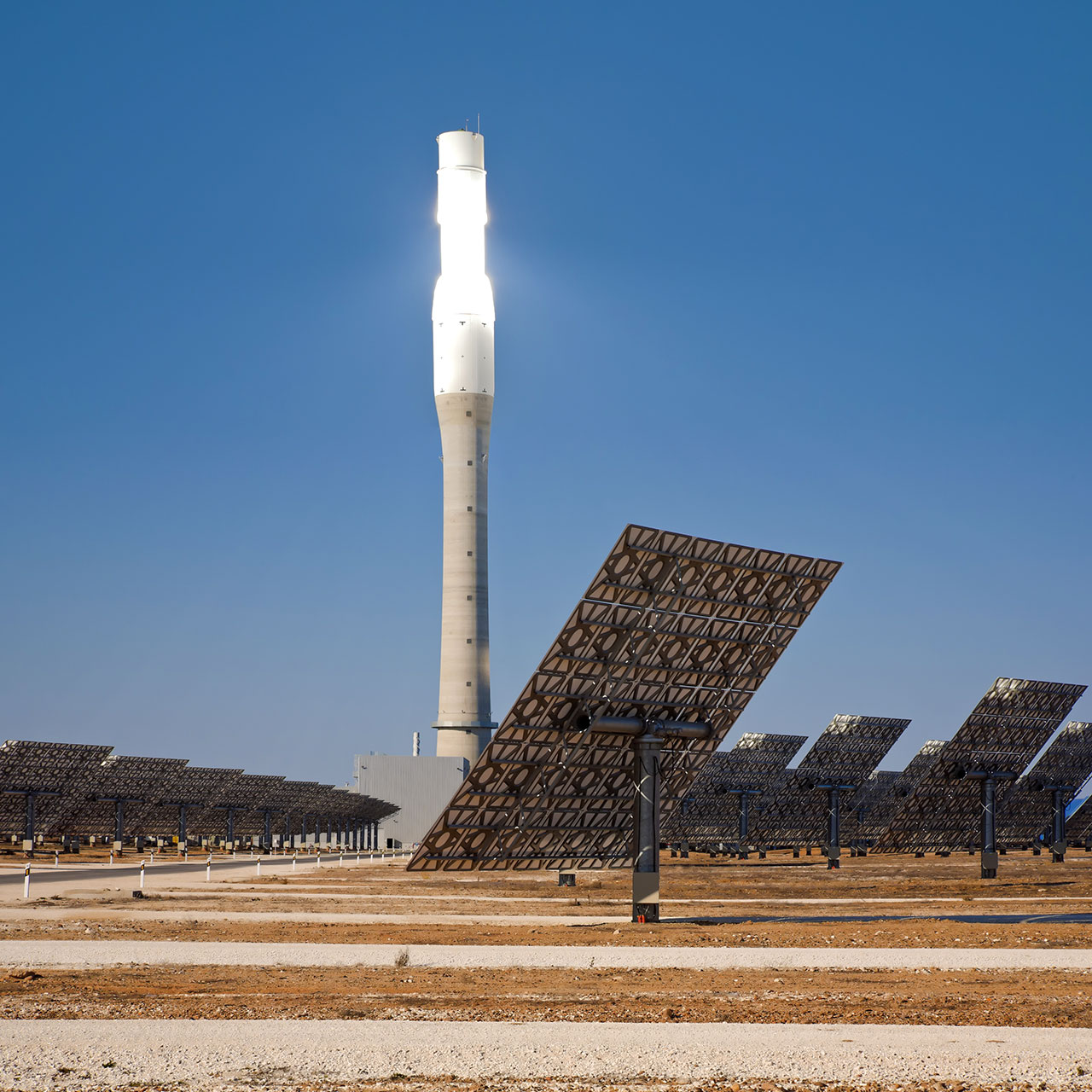

All the energy conversion technology is located in the central tower. Due to the high concentration of energy, relatively high temperatures are reached in the absorber, commonly exceeding 500 °C. This improves the heat-to-electricity conversion efficiency.

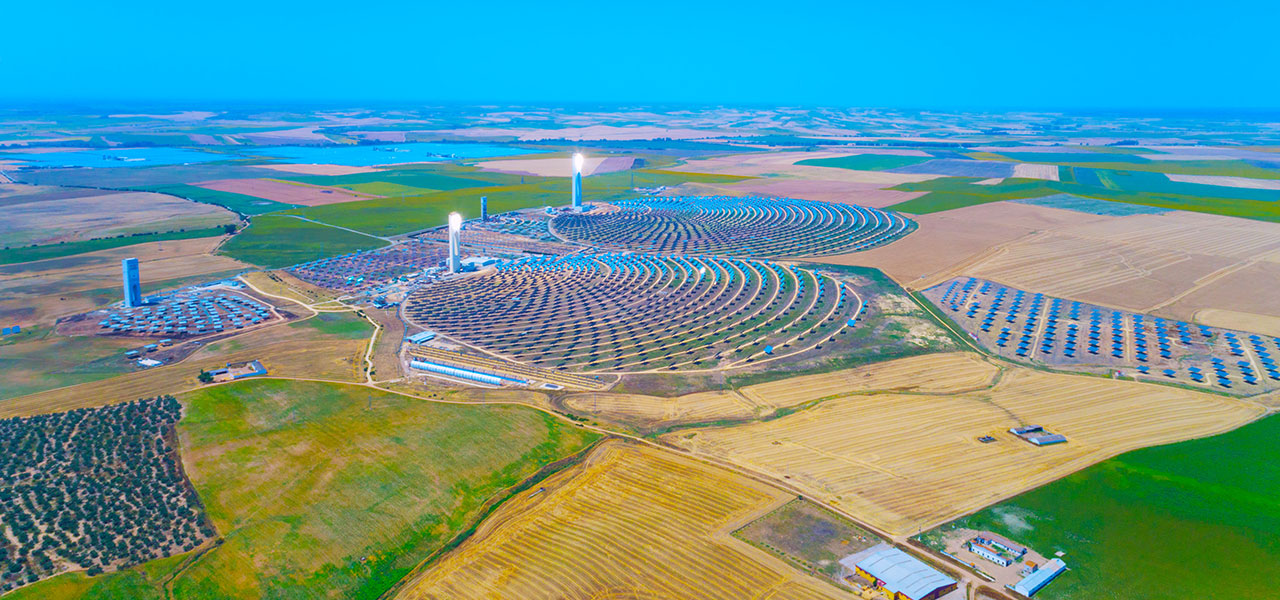

The first central tower solar power plants were built in the eighties. The most important was the pilot project Solar One power plant located in the Mohave Desert, California (map). It had an installed capacity of 10 MW, water as the heat transfer medium and an oil-rock thermal accumulator. In the mid-nineties, Solar One was redesigned to test the molten salt thermal energy storage technology and renamed Solar Two. Based on the success of the Solar Project, a similar plant was built in Spain, the Solar Tres Power Tower (map), which has an installed capacity of 15 MW. The Spanish central tower solar power plants PS 10 (map) and PS 20 (map) with their 11 and 20 MW of installed capacity respectively are also among the more powerful plants of this type.
